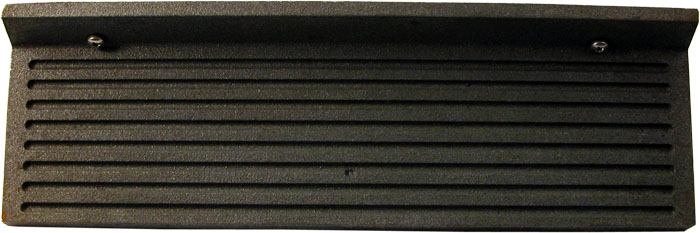

Rear Protection Plate - Upper H/S 13

Upper rear cast iron proection plate, has two M5 x 15mm screws in it to stop the top baffle board sliding backwards.

Its dimensions are 365mm x 130mm. You will need two M5 by 20mm screws #FF5013. These screw through the casting and act as a stop for the vermiculite baffle board.

Used in the Harmony 13, Stanford 13, IT13 insert and Q13 stoves

Instructions for this part are found in the Servicing Guide IN1195
