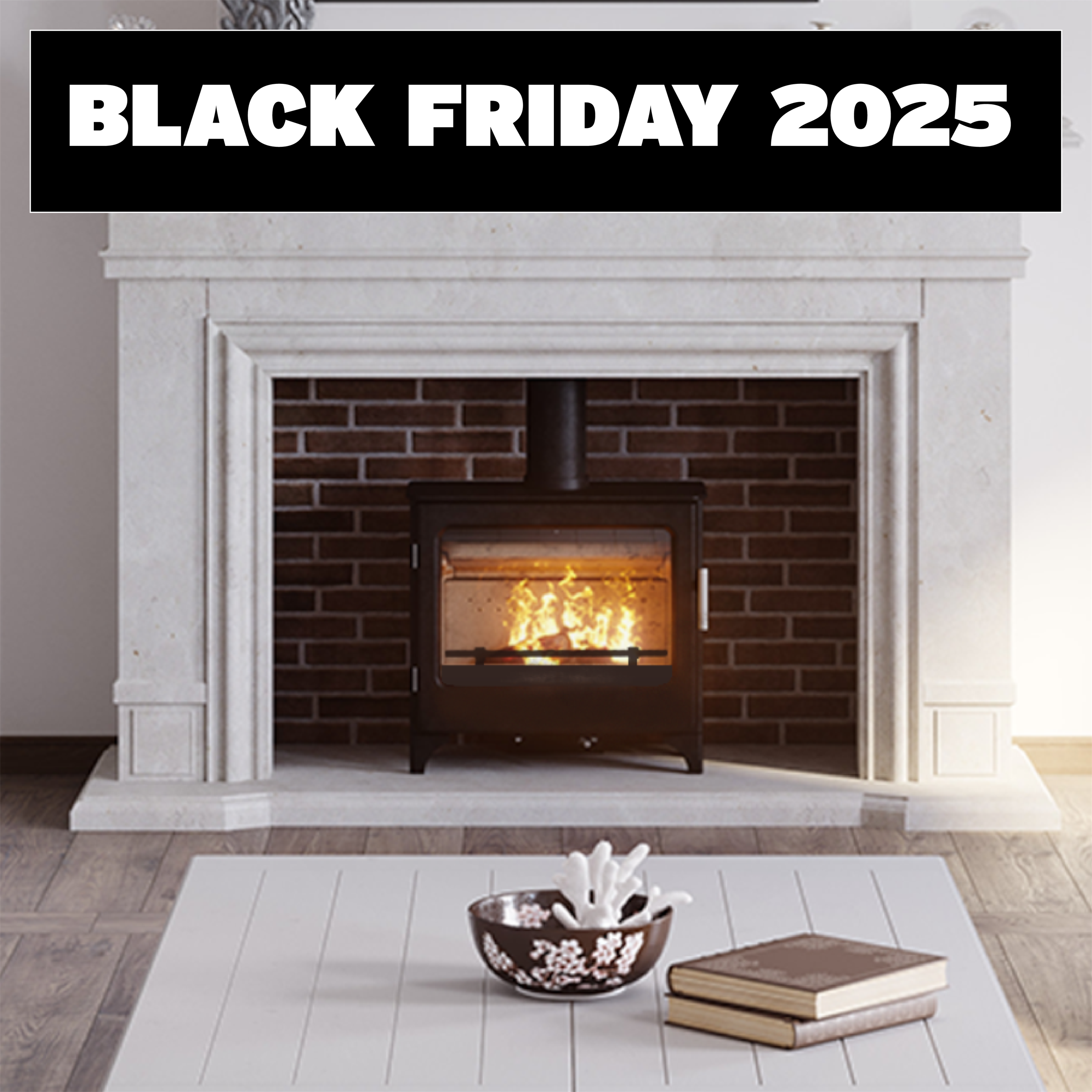

Ashcott Wide Catalyst

The Ashcott Wide stove has a deeply contoured cast iron door, slim convection top plate and sculptured cast iron legs. The door has a magnetic mechanism for easier operation. The stove's compact design is a perfect blend of classic and contemporary styling. The super slimline design enables the stove to be fitted in a tight environment. This is the latest stove design from Mendip Stoves and not only does it project a warming ambience into a room, but it also offers an engaging focal point to gather around.

The Ashcott Wide is a pleasure to use and with its milled, stainless steel air control lever it is easy to achieve an efficient burn, so you get the most out of your fuel. Complete with matching milled, stainless steel hinges and door handle, The compact design of the Ashcott is a perfect blend between classic and contemporary styling and delivering a cosy 5kW of heat means it is well suited to most rooms. As a bonus, the Ashcott possesses a direct external air connection as standard.

ENERGY RATING: A Rating Arrow    PRODUCT FICHE

Ashcott is Eco-design compliant. Eco-design is a European-wide programme to lower emissions, which came into force in the UK in 2022. Setting the standard for environmentally friendly stoves.

Find spare parts for this stove here.


*


Wood Stove

Air Wash System

Closed Combustion Capable

Catalyser Model

Contemporary Stove

Freestanding Stove

Suitable for 12mm Floorplate

Steel Body Construction

Cast Iron Door

Convection Top  Plate Stove

Painted Finish

Ecodesign Ready

Smoke Control Certified





Products specifications

Height 575mm
Width 619mm
Depth 304mm
Weight 93 kg
Flue outlet size 125 mm
Nominal Output 4.7kW
Ecodesign Ready YES
Energy Rating A
Efficiency 75%
CO @ 13% 0.04
Particulates mg/mo3 @13% 31
Maximum log length 400
Distance combustible materials rear 50mm
Distance combustible materials side 300mm
Distance to centre of top flue outlet from back of stove 124mm
Height to centre of rear outlet 460mm
Colour Anthracite
Optional closed combustion YES
Closed Combustion Outlet Size 100mm ø
Smoke Control Yes - Order Specific Model
Suitable for glass floor plate YES
