Churchill 8 MK2 - Aug'12 - March'14

This stove has had 2 different brick sets within it's production time. The easiest way to work out which brick set your stove has in it, is to measure the size of the cast grate which sits at the base of the fire chamber.

EMG Grate - This grate is 305mm x 205mm x 30mm (discontinued)

Plain Grate - This grate is 282mm x 162mm x 16mm

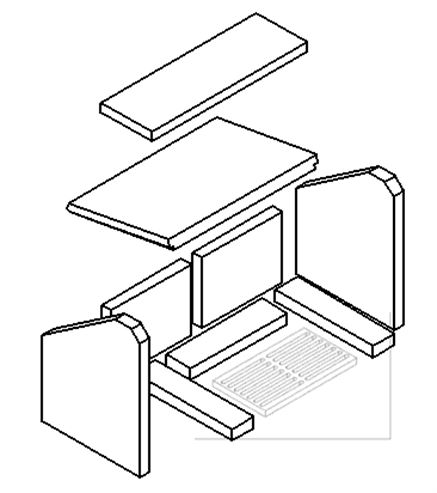

We only have a small number of the EMG grates left, as this part has now been discontinued, so we have created a conversion set (listed below) which is a full brick set and a plain grate.

There is also a full listing of all the parts below the diagrams.
